Sharp edge / Blade height adjustable / Ergonomic design
Send Email Get A QuoteSharp edge / Blade height adjustable / Ergonomic design

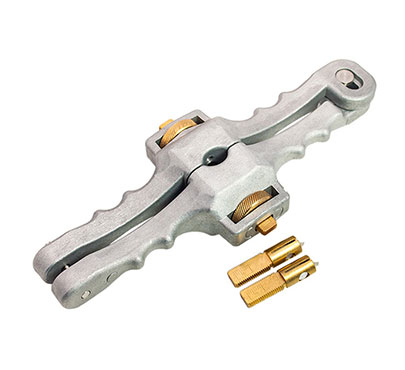

The sheath is made of high quality alloy material with hard texture and sharp blade, which can easily cut into the optical cable.

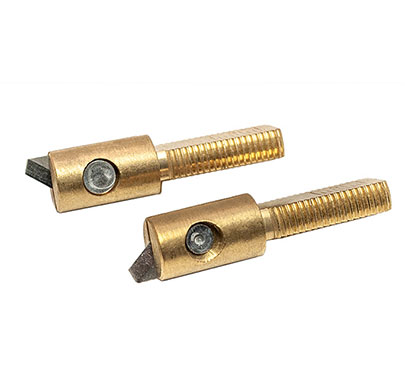

The height of the cutter head can be adjusted by rotating the nut to adapt to different thickness of optical cable.

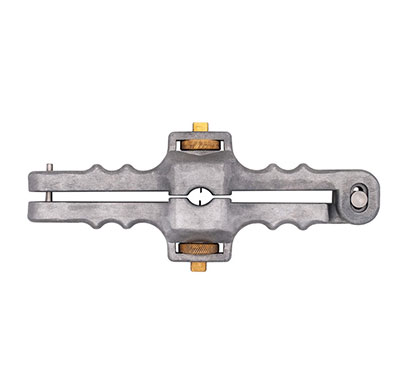

The upper and lower base is designed according to ergonomics, it is more comfortable to hold and not easy to slip.
Fine workmanship
The cutter body is polished, the surface is smooth and free from burrs, which can avoid the potential safety hazard caused by operator injury.
On-line stripping aluminum - Polyethylene bonded sheath, steel armor outer sheath and a metal reinforcing member sheathed cable;Cutter head selection of high-quality materials makes it more labor-saving for cutting optical cable sheath; Adjustable cutting depth can deal with different thicknesses of the optical cable sheath layer; More simple, quick and convenient operation.
Adjust the cutting depth according to the sheath thickness, to make the circular aperture of cable opening knife sheathed into cable sheath. Grip the cable opening knife handles on both sides in the cutting mark of optical cable sheath, make the cutter head embedded into the cable sheath, then pull cutter head along the sheath to realize the on-line stripping cable sheath.
| Applicable： | Armored cable with outer diameter between 10-25mm |

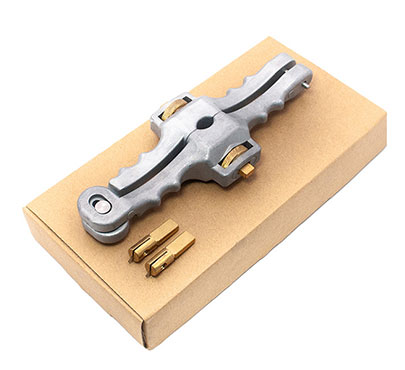

| Packing list： | Sheath stripper × 1 unit；Original blade × 1 pair |
| Dimension： | 208*88*35mm |
| Weight: | 550g |
| Product Model | HY-01 |
| Specification: | 208 x 88 x 36 mm |
| Application: | 36 cores - 96 cores armored cable1 |
