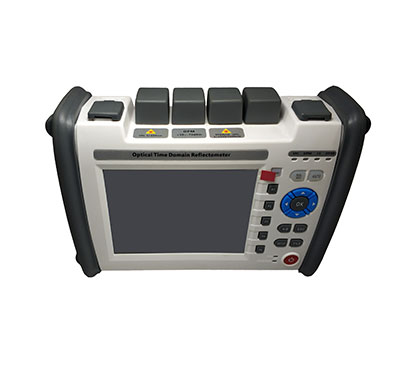

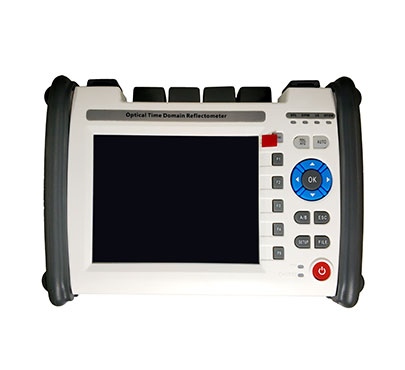

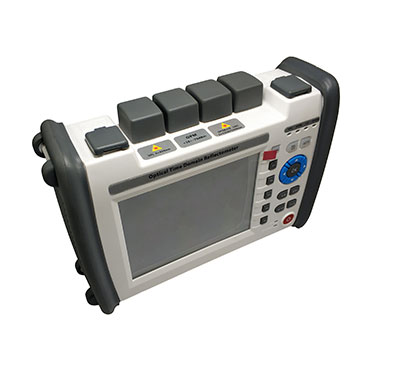

It is a comprehensive optical fiber measuring instrument developed Henan Huachuang Communication Equipment Co., ltd. to solve the measurement of various parameters of optical fiber, It mainly USES OTDR function and has other common measuring functions. Really reflected: ONE MACHINE, TESTING ALL!
Send Email Get A QuoteTouch-sensitive and solid physical button work together for perfect user experience
Excellent for short-range measurement, Dead zone： 0.8m/4m
Maximum sampling resolution： 5cm
Support multiple analysis functions on testing results： Segment return loss, Event point return loss, Multi curves comparison, quick screen shots.
Complete user data interface： USB (Type A)、MINI USB> SD cardo
| Wavelength (Max： 4) | Single mode | Multimode |
| 1310nm,1550nm,1490nm,1625nm,1650nm | 850nm、 1300nm | |
| Dynamic Range(dB) | 26〜42dB | 20dB/26dB |
| Event/ Attenuation Dead Zone | 0.8m/4m | 1.2m/5m |
| Minimum sampling resolution | 0.05m | |
| Maximum sampling point | 256,000 | |
| linearity | <0.05dB/dB | |
| Loss resolution | O.OOIdB | |
| Distance resolution | 0.01m | |
| Distance accuracy | ±(1m+Rangex3x10'5+Sampling resolution) (Regardless of the refractive index) | |
| Memory | >100000 | |
| Interface | USB (TypeAxI, Type Bx1) | |
| Battery | Single battery capacity： 7.4V/2500mAh, The standard two | |
| Temperature | Environment temperature： -10°C~+50°C； Storage temperature： -20°C~+70°C | |
| Humidity | <95% (No condensation) | |
| SizeA/Veight | 215x155x68mm /1.1kg (including battery) | |
| Module | Parameter | Note |
| VFL | 1-20mW | 10mW in default |
| OPM | Option A： -10dBm~-70dBm; Option B： +23dBm~-50dBm | Option A in default |
| Laser source | Output： -5dBm±2dB, Frequency： CW/270Hz/1 KHz/2KHz | |
| GPS/GNSS | Customized | |
| WIFI/Bluetooth | Customized | |
| IOT module | Customized |
