NK3200 multifunctional optical fiber tester suitable for FTTx and access network based engineering construction and maintenance, testing the breakpoint, length, loss of the measured optical fiber.
Send Email Get A QuoteNK3200 multifunctional optical fiber tester suitable for FTTx and access network based engineering construction and maintenance, testing the breakpoint, length, loss of the measured optical fiber. Input light automatic detection, one button automatic test; 3.5-inch color LCD screen; New rubber coating shell design, shockproof and shatter-resistant, presenting comfortable feeling, compact design; 8 in 1 function, highly integrated OTDR, optical sensor, stable light source, high-power optical power meter, VFL, calibration of network cable sequence, network cable length measurement, flashlight functions in one; Point of failure detection quickly; Connectors FC/SC/ST/LC are interchangeable; 600 internal storage, TF card expandable, USB data export; Built-in 4000mah battery, USB charging, power bank supply at any time, suitable for long-term field work.
Optical Fiber&Network Cable: Photoelectric integration, dual use of one machine

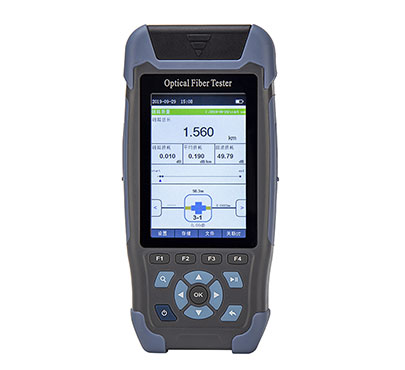

3.5-inch color LCD screen
Function: 8 functional modules to meet all your needs
RJ45: Test/Line Tracker/ Line Sequence, broadband installation is convenient and fast
Optical Sensor·Event Map, intelligent analysis of optical links
3m short blind area·60km accurate test
Light detection: effective APD protection
Remote Upgrade: Latest technical support
24dB dynamic range
60km accurate test
light detection -APD effective protection
3M event blind area
Double wavelength OTDR
Optical Sensor-Event Map

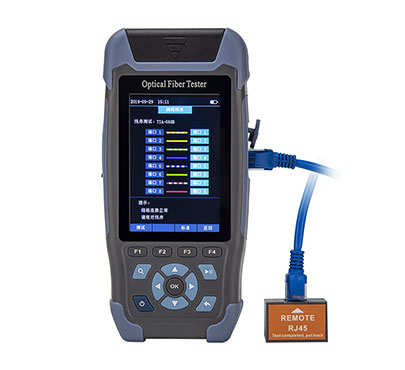

RJ45 line sequence measurement
RJ45 Line Tracker
One-click automatic test
Automatic file saving
Automatic analysis of test results
SOR file processing in batches
Remote Upgrade
Export USB data files in batches
High Reliability
20h ultra-long standby
1.5m fall-arrest
Waterproof and sprayproof
Ultra wide operating temperature

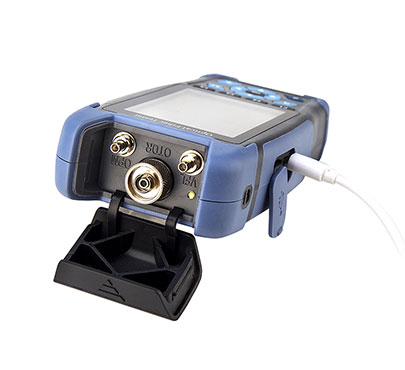

| Mini-Pro OTDR | ||
| Model | NK3200S | NK3200D |
| Wavelength | 1550nm±20nm | 1310nm/1550nm±20nm |
| Fiber Type | G.652 | |
| Dynamic Range | 22dB | 24dB/22dB |
| Event Blind Zone | 3m | |
| ATT Blind Zone | 8m | |
| Test Range | 500m~60km | |
| Pulse Width | 3ns~10us | |
| Ranging accuracy | ±（1m+ Sampling interval +0.005％×Test distance） | |
| Loss accuracy | ±0.05dB/dB | |
| Sampling Points | 16k~128k | |
| Sampling resolution | 0.05m~8m | |
| Reflection accuracy | ±3dB | |
| Data Storage | Internal：≥600；External：TF Card | |
| Laser Safety Level | Class Ⅱ | |
| File format | SOR Standard file format | |
| Connector | FC/UPC（Interchangeable SC、ST） | |
| OPM | ||
| Wave Range | 800nm~1700nm | |
| Interface Type | Universal Joint FC/SC/ST | |
| Test Range | -50dBm～+26dBm | |
| Uncertainty | ±5% | |
| Frequency Identification | CW/270/330/1k/2kHz | |
| Calibration wavelength | 850/980/1300/1310/1490/1550/1625/1650nm | |
| LS | ||
| LD Type | FP-LD | |
| Wavelength | 1550nm±20nm | 1310nm/1550nm±20nm |
| Output Power | ≥-5dBm | |
| Modulation Frequency | 270/330/1k/2kHz | |
| Stability | CW，±0.5dB/15min （Test after 15 minutes of preheating） | |
| Connector | FC/UPC（Interchangeable SC、ST） | |
| VFL | ||
| Wavelength | 650nm±20nm | |
| Output Power | ≥10mW | |
| Mode | CW/1Hz/2Hz | |
| Connector | FC/SC/ST | |
| RJ45 Cable Length Measurement | ||
| Test Range | 300m | |
| Other Parameters | ||
| Display | 3.5 inch Color LCD | |
| Data Interface | Micro USB | |
| External storage | TF Card | |
| Power Supply | Polymer Li-Battery：3.7V，4000mAh Adapter：5VDC，2A | |
| Battery Life | Standby＞20h；Measuring time＞12h | |
| Operating Temperature | -10℃～+50℃ | |
| Storage Temperature | -40℃～+70℃ | |
| Relative Humidity | 0～95％Non Condensing | |
| Size | 173mm×82mm×37mm | |
| Weight | ≤350g | |
| Functions: Blue ， OTDR/EVENT MAP/OPM/LS/VFL/RJ45 Sequence/RJ45 Cable Tracker(Additional purchase detector)/RJ45 Line length/Flashlight | ||
Test temperature is 25℃+2℃, maximum pulse width, the average time is more than 3 minutes.
Test conditions of Event Blind Zone are minimum range, minimum pulse width, reflection loss of optical fiber end (> 45dB), typical value.
