A minimum of 4000 cores can be spliced
Made of imported tungsten steel / Discharge stability / Low loss / Long life
Adopt 93A fine particle tungsten steel
Can be used for main line splice
Excellent quality / Precision craft / Dimension accurate
The fixed cap is made of insulating material, which can withstand high temperature without deformation
The outside of the rod is protected by protective casing to avoid wear when the electrode is not in use
The electrode of imported tungsten steel is still sharp and smooth after 400 times magnification under microscope, which ensures the stability of discharge, low loss and long service life.
The electrode of common material becomes blunt and the surface is rough after 400 times magnification under microscope, resulting in discharge deviation, large loss and easy damage to the splicing machine.
Corning:75, X76, X77

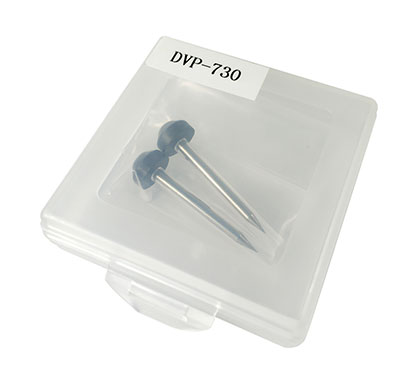

DVP: DVP-720, DVP-730, DVP-750

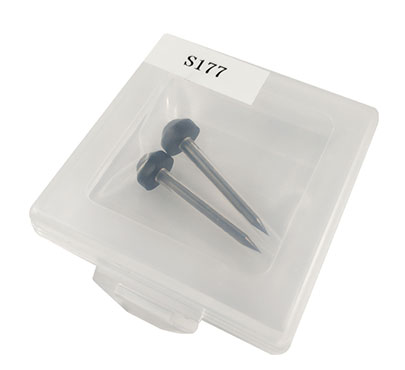

Furukawa:S123, S175, S176, S177, S178
Nanjing Jilong: KL-260, KL-280, KL-300T
Ericsson; SU925, 975,995 RSU-08, RSU-12
Fujikura: FSM40S, 50S, 60S, 80S, 16S, 15S, 30S, 20R, 16R, 30R
Sumitomo :T-39, T-37SE, T-37, T-65, T-36, T35, T62, T63
How to replace the electrodes
First of all, the fusion splicer machine must be in the shutdown state, remove the protective cover of the electrode chamber, loosen the screw of the upper electrode, take out the upper electrode; Then loosen the jackscrew of the lower electrode and remove the lower electrode.
Second, install the new electrode. The operation steps are opposite to the method of removing the electrode. The gap between the cusp of two electrode is required to be 2.6±0.2mm.
Finally, the cusp of the electrode should not be touched during the assembly process to prevent damage to the electrode and to avoid the electrode falling into the machine and causing damage. After electrode replacement, the arc position should be calibrated.
After the electrodes are installed, turn on the power switch of the fusion splicer machine.
Press the menu key to enter the first-level menu after the fusion splicer machine enters the initial screen.
Find the machine maintenance by moving the cursor, select clean (aging) electrode item, the machine will discharge for clean aging electrode automatically after confirmation.
Install the cut left/right optical fiber and find the discharge calibration by moving the cursor. The machine will performs discharge test and displays “OK” or “ Success” when the test is completed.
