Achieve full coverage of optical fiber network? Optical fiber polishing machine is indispensable!
Digital economy Is becoming an important engine for China’s new round of economic development and an important indicator to measure economic development and social progress
The ONU and the router are in the multimedia box in the living room, and the other rooms adopt the wiring scheme of five types of wires ONU and router are not together, only one room wired Internet
Unreasonable location of wireless router (weak WIFI signal in other rooms) The position of the ONU is not reasonable (other rooms cannot be moved without pre-arranged optical fiber)

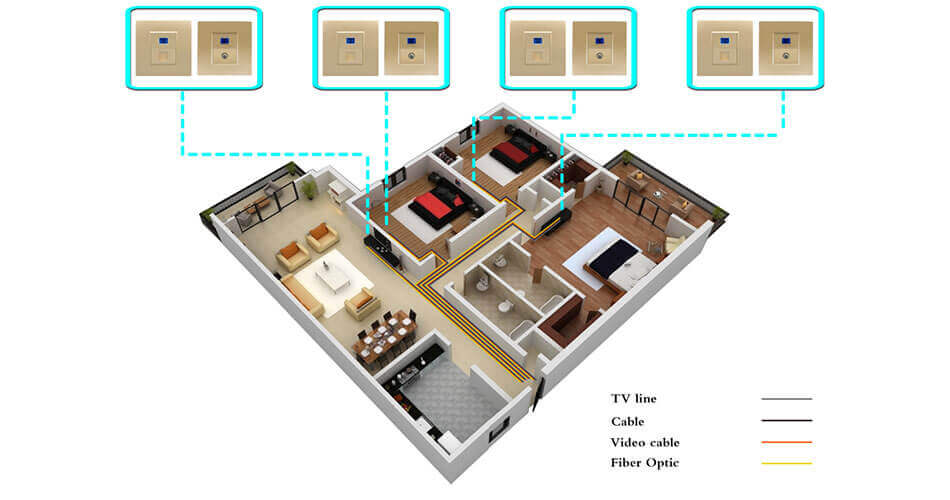

General layout of construction wiring for full coverage

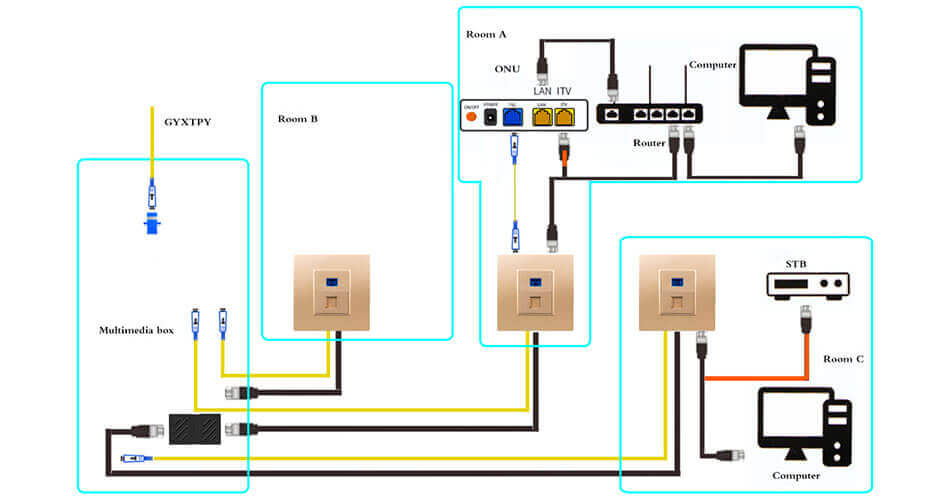

Optical fiber full coverage Device Connection Scheme 1 (Broadband +IPTV)

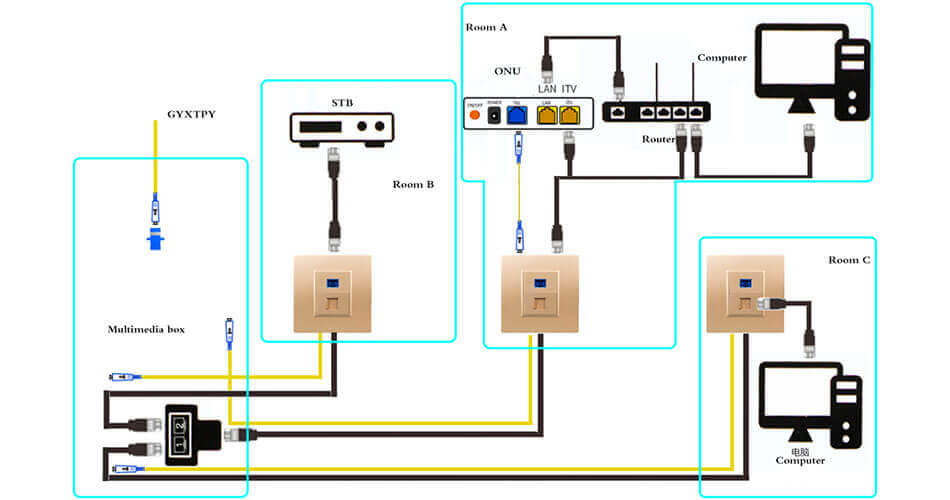

Optical fiber full coverage Device Connection Scheme 2 (Broadband)

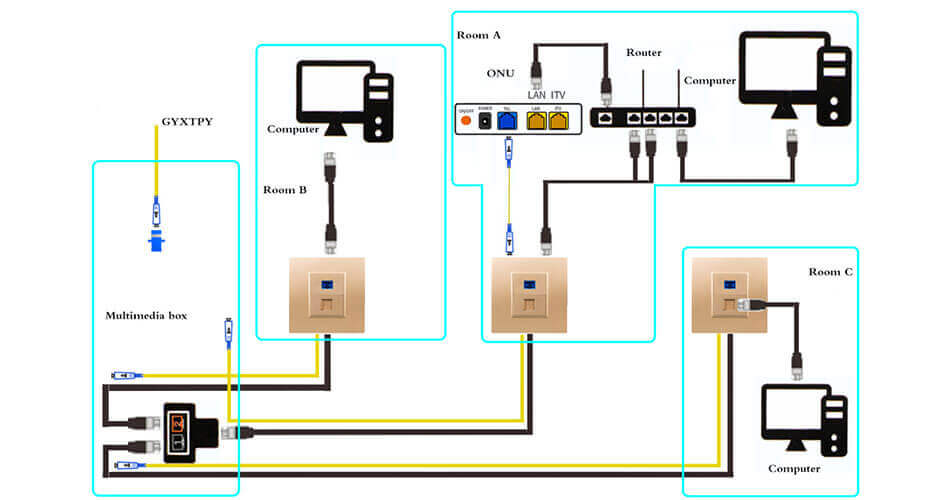

Optical fiber full coverage Device Connection Scheme 3 (Broadband)

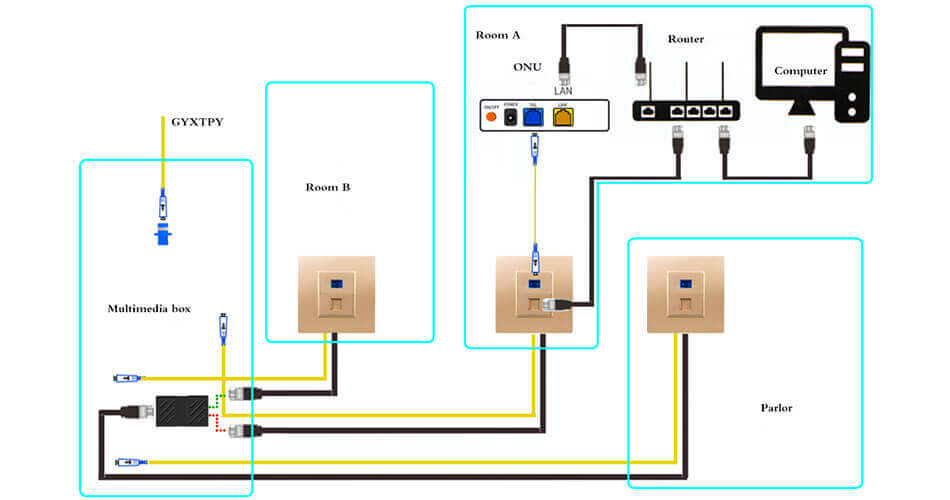

Optical fiber full coverage Device Connection Scheme 4 (Broadband)

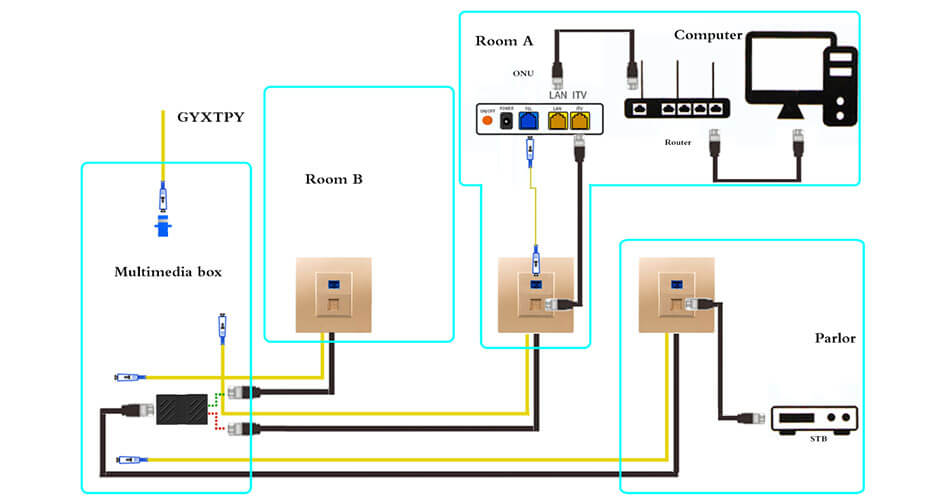

Optical fiber full coverage Device Connection Scheme 5 (Broadband)

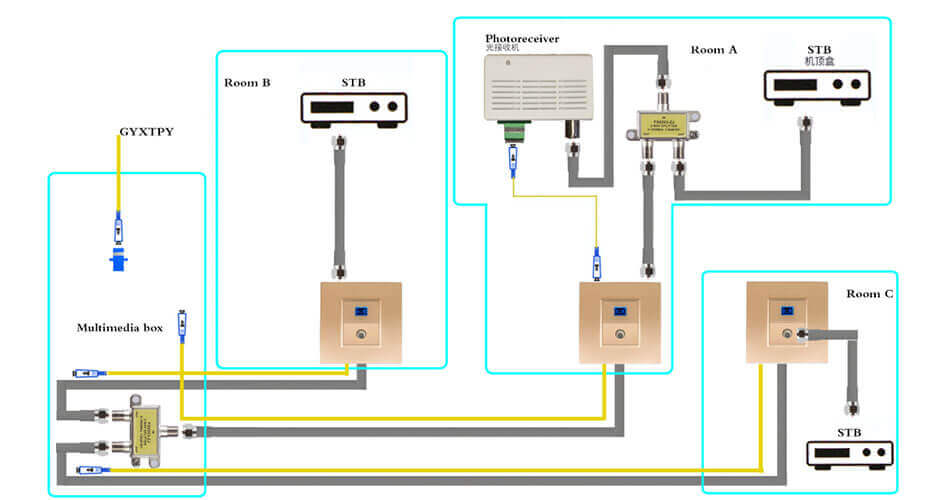

Optical fiber full coverage broadcasting equipment Connection Scheme (CCTV)
Solve the problem that multimedia space is not enough to hold an OUN and router at the same time
Place the wireless router in the central room so that the wireless signal is evenly covered throughout the room
Each room can be installed optical port, data port and two-in-one 86 panel of optical port and video port The drop cable with five types of cable or the drop cable with the video cable is put together, using the same PVC pipeline
This product supports UPC/APC fiber end-face grinding, single-mode/multi-mode optical fiber, FC/LC/SC (customizable) and other connector types, which are widely used in the field production and fiber end-face repairing for Mobile, Telecom, Unicom and radio and television FTTH, indoor distribution system, optical fiber wiring system and monitoring system
